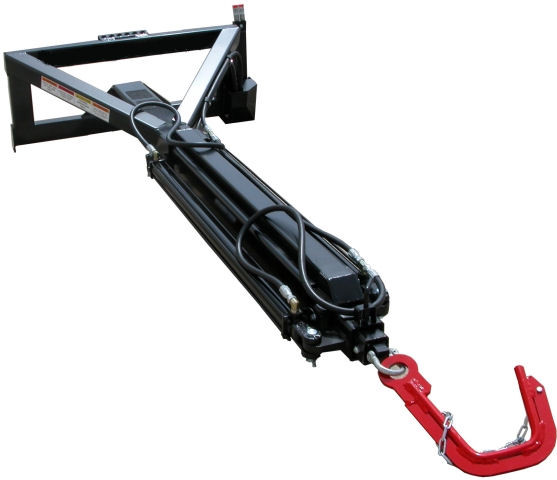

Standard Equipment: End “J” hook, two – 2″ X 48″ tie-rod cylinders, hydraulic hoses with standard flat face couplers.
Length: Retracts to 8′ 6″ and extends to 20′. Extends to 30′ in combination with vertical lift of machine.
Hydraulic requirements: 4 GPM at 600 PSI.
Lifting capacity: Depends on extension angle, length and skid steer model. You may also add any of the optional accessories depending on what you want to use the Truss Boom for such as Sheet Carrier (Short-5″ Peg), (Long-7.5″ Peg), Pallet Carrier or Storage Bin.

• Truss Boom assures the accuracy and speed on every job
• Securely holds materials in place for projects with critical tolerances.
• Dramatically reduces the time your crew needs to get the job done.

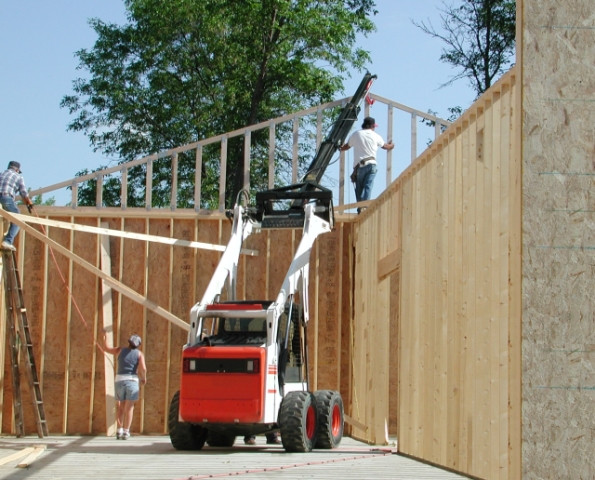

• Easily lifts and places trusses, shingles, hay bales & more
• Reaches from 8′ 6″ to 30′
• Requires only one hydraulic outlet
• Fits most popular skid steer loaders

Specs:

• Telescope Tube Diameters: 6″, 5″, 4″ 3″
• Retracts to 8′ 6″ and extends to 20′.
• 4 GPM at 600 PSI.
• End hook, two – 2″ X 48″ tie-rod cylinders
• Capacity, Extended: 900 lbs.
• Weight of Truss Boom: 705 lbs
